1010music bluebox

Start 360°

Draagbare digitale 12-kanaals audiomixer en recorder

12 Mono of 6 stereo tracks kunnen live of vooraf opgenomen gemixt worden
Onafhankelijke routing van elk spoor naar elke combinatie van drie stereo-uitgangen
In mixer modus kunnen parameters voor verschillende sporen gelijktijdig worden geregeld
Track modus toont alle parameters voor één track
3,5" Touch display
4-Bands EQ (ondersteunt low cut/low shelf, parametrische en high cut/high shelf instellingen voor elke band)
Globale reverb en delay effecten
Geïntegreerde globale compressor
Opnemen/afspelen in 24-bit / 48 kHz WAV-bestanden van/naar microSD-kaart
USB audiostreaming
Metalen behuizing
Afmetingen (B x H x D): 139,7 x 50,8 x 127 mm
Gewicht: 0,450 kg
Incl. MicroSD-kaart (met bluebox firmware en vooraf geïnstalleerde projectbestanden), USB-B splitterkabel, USB stroomkabel, netadapter met 3 internationale adapters en 2 MIDI-adapters van 3,5 mm TRS-stekker naar 5-pins MIDI aansluiting

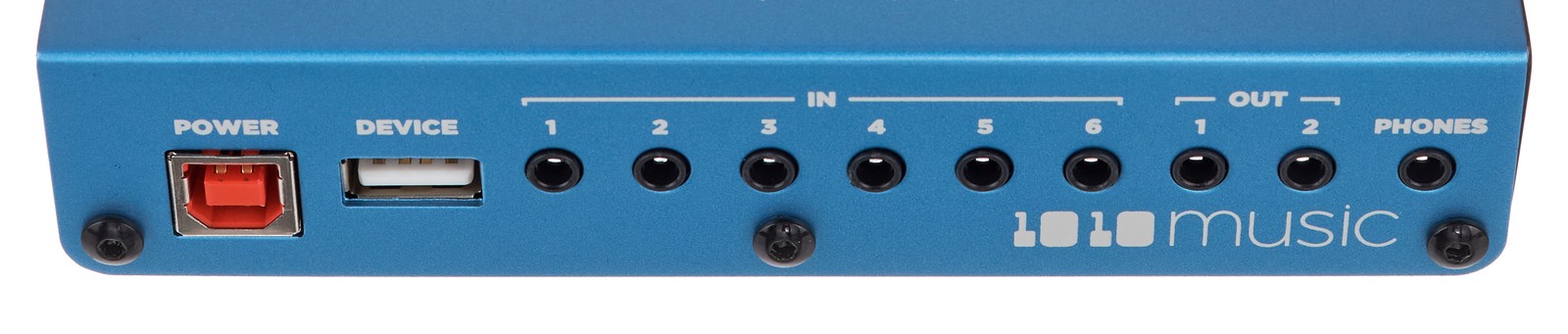

Aansluitingen:

6 Stereo line ingangen: 3,5 mm mini-jack
2 Stereo line uitgangen: 3,5 mm mini-jack
1 Stereo hoofdtelefoonuitgang: 3,5 mm mini-jack (kan worden gebruikt als line uitgang)
MIDI ingang en uitgang: 3,5 mm mini-jack (voor synchronisatie)
USB power
USB device

30 dagen Money-back garantie

Drie jaar Thomann garantie

Leverbaar sinds Januari 2021

artikelnummer 504944

verkoopseenheid 1 stuk

User Interface Physical

Number of faders 0

DSP Input channels 12

Mic Preamp 0

Physical outputs 6

Digital stagebox connection No

Hotspot No

Multitrack Record No

integratated Player/Rec via USB/SD Multitrack

19" Rackmount No

Max.number of input channels 12

Number Of Tracks 12

Number Of Simultaneous Recording Tracks 12

Microphone Inputs 0

Analog Line Inputs 12

DSP Output Channels 6

Analog Line Outputs 2

Analogue Inputs 6

Busses 0

Analogue Outputs 3

Mono-Line Input 12

Design Desktop

Stereo-Line Input 6

Ethernet No

Computer interface USB

MIDI-interface 1

Special Features Desktop Design

Soundcard interface No

Recorder Format WAV

RTA No

FX Processor 3

31 Band EQ 0

Matrix 0

DCA/VCA Groups 0

Midi Connector TRS

Sample rate 48 kHz

Separate Personal Monitor system No

Expansion Card slots 0

Digital ADAT No

Digital SPDIF No

Digital AES3/ASESEB No

Digital MADI No

Digital Dante No

Case Optional

Height 51 mm

Width 140 mm

Depth 127 mm

Weight 0,5 kg

Toon meer

Productvariaties

1010music bluebox

1010music bluebox Draagbare digitale 12-kanaals audiomixer en recorder * 12 Mono of 6 stereo tracks kunnen live of voora...

€ 539

naar het product

1010music bluebox Eurorack Edition

1010music bluebox Eurorack Edition Digitale Eurorack 12-kanaals Audio Mixer en Recorder * Met USB audiostreaming en geïn...

€ 739

naar het product

€ 539

Alle prijzen incl. btw

Best seller rang

in digitaalmixer

Dit is wat klanten die dit product bekeken hebben gekocht hebben

1010music bluebox Eurorack Edition

€ 739

kochten

Behringer X32 Compact

€ 1.168

49 Klantenbeoordelingen

5 39 Klanten 4 9 Klanten 3 1 Klant 2 0 Klanten 1 0 Klanten

4.8 / 5

bediening

features

geluid

afwerking

Review richtlijnen

30 Recensies

Ideal for small desktops and DAW-less recording

Frank Wolf 25.10.2022

Very happy with this small desktop mixer. Easy to use, either with the onboard knobs and touch screen, or combined with a Midi Controller such as a Novation Launch Control XL or a FaderFox EC4 through Midi-learn. I’m using the 2 additional stereo-outs for separate effects chains. Highly recommend combining with Cordial cables. Their solid and slim Neutrik plugs, fit perfectly on the back of the BlueBox and even leave some space in between. For me, the only small caveat is that you have to take the SD-Card out to further process your recordings. Would have liked that to be accessible over USB.

bediening

features

geluid

afwerking

Evaluatie melden

Bent u van mening dat deze evaluatie om een of andere reden onjuist of onacceptabel is? Geef ons s.v.p. de reden voor uw bewering in de volgende tekstbox en – indien mogelijk – uw E-mailadres voor verdere vragen.

Vertaling tonen

Origineel tonen

Helaas is er een fout opgetreden, probeert u het a.u.b. later nogmaals.

Great value for real-state, but a bit of noise issues

Lacrymology 03.05.2021

It's really hard to give a one-word evaluation of the sound because the internal sound quality is quite superb, it has great dynamic range without distortion, the effects are difficult to dial, but pretty great quality, and overall it behaves quite nicely. But

But it's really really sensitive to bad power. It may turn off on you if you use a lesser cable, and there's ground noise if your setup is kinda finicky. Right now I have a base noise that's quite noticeable if gain or volume are to high in some tracks or master, but it's quite manageable since you can get good quality sound with lower levels. I'm sure if I took the time to find what's the source of the noise issues I'd be able to clean it up.

One more issue is that the inputs are too close together, so you need good quality cables with small tips.

All things considered, it packs a lot in a very small package, and can handle from instrument to eurorack levels, so if desktop real state is an issue and you want flexibility, it's a good choice.

bediening

features

geluid

afwerking

Evaluatie melden

Vertaling tonen

Origineel tonen

Helaas is er een fout opgetreden, probeert u het a.u.b. later nogmaals.

Superb piece of gear

Bartola Valves 01.03.2021

What you need to manage Eurorack-type signal levels and provide an excellent mixing and recording platform.

I'd have loved to have the splitting jack adaptors to be included.
You need to watch out for the type of cables you use as the jacks are very close to each other.

bediening

features

geluid

afwerking

Evaluatie melden

Vertaling tonen

Origineel tonen

Helaas is er een fout opgetreden, probeert u het a.u.b. later nogmaals.

12 channel recorder in a compact package

Ben27 30.03.2025

Before getting the bluebox, if I wanted to record a jam or similar, I needed to plug all the synths into my line mixer, fire up the daw, set up a session, etc etc.

With this, I literally wake it up and hit record. Brilliant box, massive timesaver and means I can record whatever I'm doing whenever I want.

Sound quality is good, haven't had any noise issues. The supplied microSD card needs replacing, and the new firmware allows you to use it as an interface, which is insane for the price. It takes up very little room too, which was a huge bonus.

Be warned about the cable size though - the cheap cordial cables I bought needed cutting down in order to get them to fit properly!
